Understanding Microarray Gene Expression: A Powerful Window into the Genome
Microarray gene expression technology has transformed the way scientists study genes, cells, and diseases. Instead of analyzing one gene at a time, microarrays allow researchers to measure the activity (expression) of thousands of genes in a single experiment. This high-throughput approach is essential in modern genomics, cancer research, drug development, and personalized medicine.
In this article, we explore what microarray gene expression is, how it works, and why it remains important in today’s molecular biology and biotechnology laboratories.
What Is Microarray Gene Expression?
Gene expression is the process by which information from a gene is used to produce a functional product, usually a protein or functional RNA. When a gene is “expressed,” its DNA is transcribed into messenger RNA (mRNA).
A microarray gene expression experiment measures the amount of mRNA produced by many genes at once. The basic idea is simple:
- Each spot on a microarray slide contains DNA probes specific to a gene.
- mRNA from a biological sample (cell, tissue, blood, etc.) is converted into labeled cDNA.
- The labeled cDNA binds (hybridizes) to complementary DNA probes on the slide.
- The intensity of the signal at each spot indicates how strongly that gene is expressed.
This gives a global expression profile of the sample – like a snapshot of which genes are turned on or off under certain conditions.
How Does a Microarray Work? (Step by Step)
Although microarray systems can vary between manufacturers, the workflow usually follows these main steps:
1. Sample Collection and RNA Extraction
Biological samples (cells, tissues, blood, organisms) are collected. Total RNA is extracted using dedicated RNA extraction kits and purified to remove proteins, DNA, and contaminants.
2. Reverse Transcription and Labeling
The extracted mRNA is converted into complementary DNA (cDNA) using reverse transcriptase enzymes. During this step, fluorescent dyes are incorporated into the cDNA (for example, Cy3 and Cy5 in two-color arrays).
- One dye may represent a control sample.
- Another dye represents a test or treated sample.
3. Hybridization to the Microarray Slide
The labeled cDNA mixture is applied to the microarray slide. Each spot on the slide contains many copies of short DNA sequences (probes) that are specific to known genes.
- If the cDNA sequence matches the probe, it hybridizes (binds) to that spot.
- Non-specific binding is minimized by washing steps and optimized hybridization conditions.
4. Washing and Scanning
After hybridization, unbound cDNA is washed away. The slide is then placed in a microarray scanner, which uses lasers to excite the fluorescent dyes and capture an image of the slide.
The intensity of fluorescence at each spot reflects the level of expression of the corresponding gene.
5. Data Analysis
Specialized software converts the scanned image into numerical data:
- Background correction
- Normalization (to correct technical variation)
- Comparison between conditions (e.g. healthy vs diseased, treated vs untreated)
The output is a list of genes that are upregulated, downregulated, or unchanged.
Applications of Microarray Gene Expression
Microarray technology has contributed to many fields of life science and medicine:
1. Disease Profiling and Biomarker Discovery
By comparing gene expression in healthy vs diseased tissues, researchers can identify specific gene signatures associated with:
- Cancer subtypes
- Autoimmune diseases
- Neurodegenerative disorders
- Infectious diseases
These signatures can help discover biomarkers for diagnosis, prognosis, and treatment response.
2. Drug Development and Toxicogenomics
Pharmaceutical companies use microarrays to study how candidate drugs affect gene expression in cells or animals. This helps to:
- Understand mechanisms of action
- Detect unwanted toxicity
- Identify off-target effects
This field is often called toxicogenomics.
3. Functional Genomics
Microarrays are key tools in functional genomics, where the goal is to understand the roles of genes in complex biological pathways. By analyzing expression patterns:
- Genes with similar expression profiles may be involved in related pathways.
- Researchers can study the impact of gene knockouts, mutations, or environmental conditions.
4. Personalized and Precision Medicine
In oncology, gene expression profiles from tumors can guide personalized treatment decisions:
- Classifying tumor subtypes
- Predicting which patients will respond to specific therapies
- Estimating risk of recurrence
Microarrays were among the first technologies to make genomics clinically relevant at the patient level.
Microarrays vs Next-Generation Sequencing (NGS)
In recent years, RNA sequencing (RNA-Seq) and other next-generation sequencing technologies have become very popular. They offer:
- Higher sensitivity
- Ability to detect novel transcripts and isoforms
- A wider dynamic range of expression levels
However, microarrays still have several advantages:
- Lower cost per sample
- Standardized platforms and workflows
- Faster turnaround for routine, high-throughput experiments
For many laboratories and diagnostic applications, microarrays remain a robust, reliable, and cost-effective option for large-scale gene expression analysis.
Key Components and Instruments in a Microarray Workflow
For a laboratory or diagnostic center working with microarray gene expression, several categories of equipment and consumables are essential:
- RNA Extraction Systems & Kits – to obtain high-quality RNA.
- Thermal Cyclers & qPCR Instruments – for cDNA synthesis and validation experiments.
- Hybridization Ovens & Chambers – to ensure uniform hybridization conditions.
- Microarray Slides & Chips – pre-printed with oligonucleotide or cDNA probes.

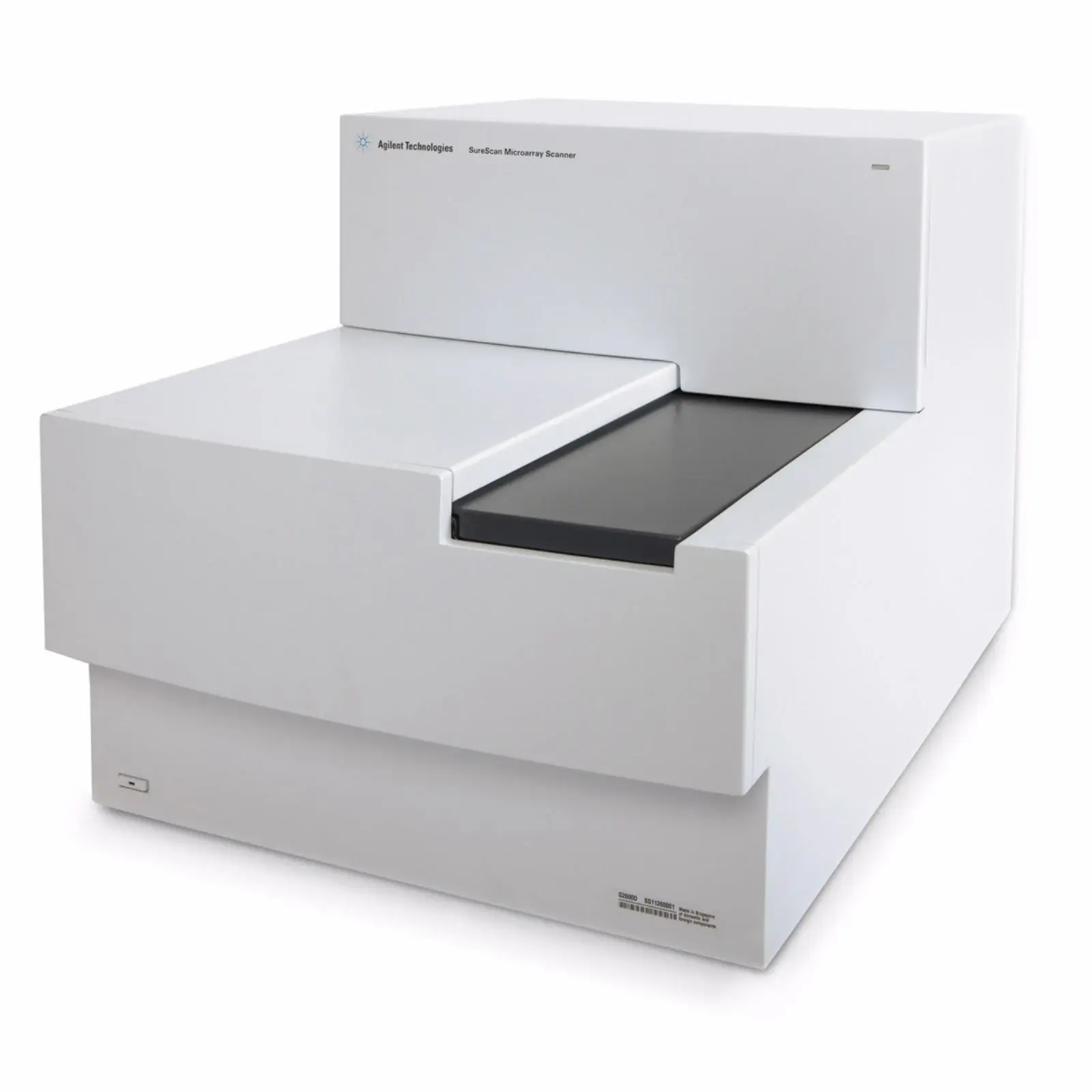

- Microarray Scanners – high-sensitivity imaging systems for fluorescence detection.
- Bioinformatics Software & Workstations – for image analysis, normalization, and interpretation of gene expression data.
Challenges and Considerations in Microarray Experiments
Despite their power, microarray experiments require careful planning:
- RNA Quality: Degraded RNA leads to unreliable results.
- Experimental Design: Include biological replicates and appropriate controls.
- Normalization & Statistics: Proper analysis is essential to distinguish real biological changes from technical noise.
- Annotation & Standards: Using community standards such as MIAME (Minimum Information About a Microarray Experiment) ensures that data can be shared and understood by others.
The Future of Microarray Gene Expression
Microarrays are part of a broader landscape of omics technologies. While RNA-Seq and single-cell sequencing have expanded the possibilities of transcriptomics, microarrays still play an important role in:
- Large-scale screening
- Routine diagnostic panels
- Cost-sensitive clinical and research settings
By combining microarray data with other approaches (proteomics, metabolomics, clinical data), researchers can gain a deeper, systems-level understanding of disease mechanisms and treatment responses.
Conclusion
Microarray gene expression technology remains a cornerstone of modern molecular biology. It allows scientists to move beyond single-gene analysis and observe the global behavior of thousands of genes at once.
Whether the goal is to discover new biomarkers, profile cancer subtypes, evaluate drug safety, or explore complex pathways, microarrays provide a powerful, scalable, and relatively affordable solution.
For laboratories and institutions looking to implement or upgrade their microarray workflows, investing in reliable sample preparation systems, hybridization and washing equipment, high-performance microarray scanners, and robust data analysis tools is essential to obtain accurate, reproducible, and clinically meaningful results.
